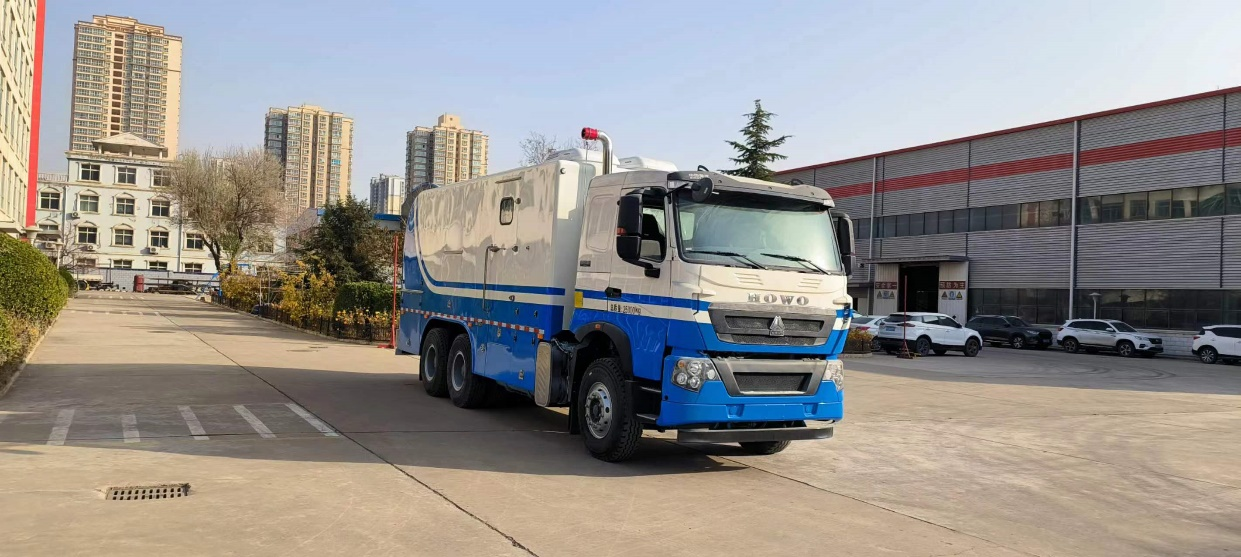

LC5251TCJ Well logging truck is mainly used for logging works in oil field.

Features

ZZ1257N464HF1class II chassis, China IV emission standard, 6*4 drive, single row cab, and MC11.40-60 gearbox with superior performance;

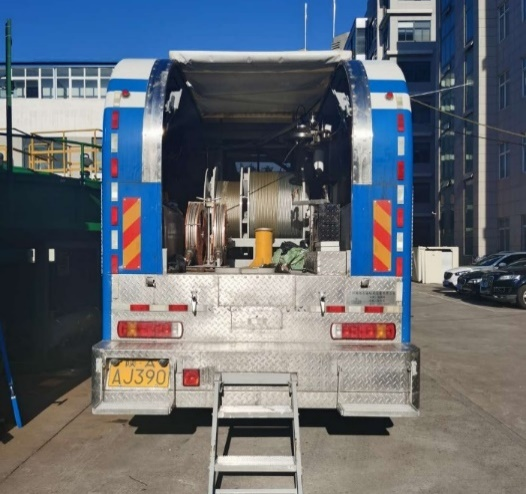

Double drums: anti-magnetic steel, coaxial;

Winch: full hydraulic transmission;

The whole carriage adopts aluminum alloy skeleton, straight grain stainless steel plate, sandblasting aluminum alloy plate;

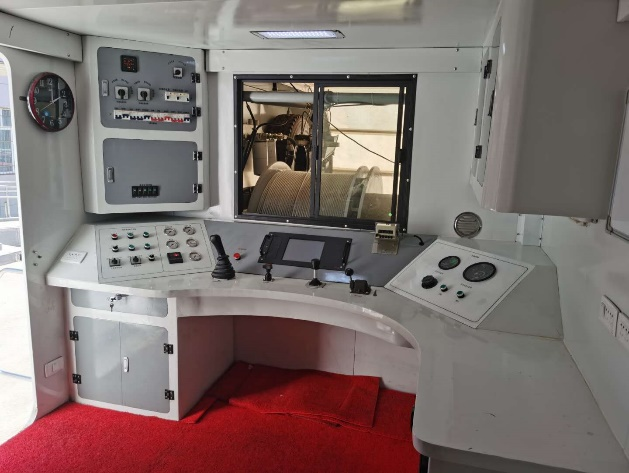

Heat preservation treatment is carried out on the six sides of the operating cabin;

Heating system and cold-warm air conditioning are installed on the top of the vehicle, making the working environment comfortable;

Dupont paint for a durable appearance in harsh environments.

Applications

Units are customized for cased hole logging,open hole logging, engineering logging as well as production logging applications.

Main technical parameters

Item	Description
Winch	Capacity	Coaxial double drum: ≤5500m (Φ11.8mm Wireline), ≤5500m (Φ5.6mm Wireline)
	Lifting capacity	50kN (Φ11.8mm Wireline)/25kN(Φ5.6mm Wireline)
	Lifting speed	50--8000m/h (Wireline)
	Drive form	Power take-off+ Hydraulic system + Planetary reducer
Chassis	zhongqi(vehicle chassis optional)
Person capacity	3
Chassis Model	ZZ1257N464HF1
Driving mode	6×4
Overall dimensions	9600×2500×3760(mm)
Wheel base	4325+1350（mm）
Engine	Model	MC11.40-60
	Power	297kW
	Maximum torque	1900N·m/1000～1400rpm
Gear box	HW19709XST
Total mass	24805kg
Maximum speed	90km/h
Approach angle	20°
Departure angle	13°

Basic Parameters

No.	Items	Model & Specifications	Description
1	Chassis (optional)	ZZ1257N464HF1	Three axes
2	Drum winch	Homemade, Disc brakes included	Cable φ11.8/5500m + Cable φ5.6/5500m
3	Subframe	Homemade
4	Hydraulic drive system	Fully hydraulically driven	Rexroth variable displacement pump/motor + W16T reducer
5	Hydraulic generator	marathon	25KW-230V-50Hz
6	Diesel generators	J108 8.0HDKAL(220V, 50Hz)	Kubota
7	Metering devices	FYJK-1000	QINYOU/FANGYUAN
8	AC Air conditioning	TianE(220V, 50Hz)	2 sets
9	Carriage	All aluminum, welded	Aluminum alloy skeleton, aluminum alloy skin
10	Heater		220V/50Hz, 2 units
11	Collector ring		Atlas, 7 cores
12	Rope guider device	Liquid cylinder, Rexroth operating valve
13	Electronic control system	Homemade
14	Pneumatic control system	Homemade
