Product details

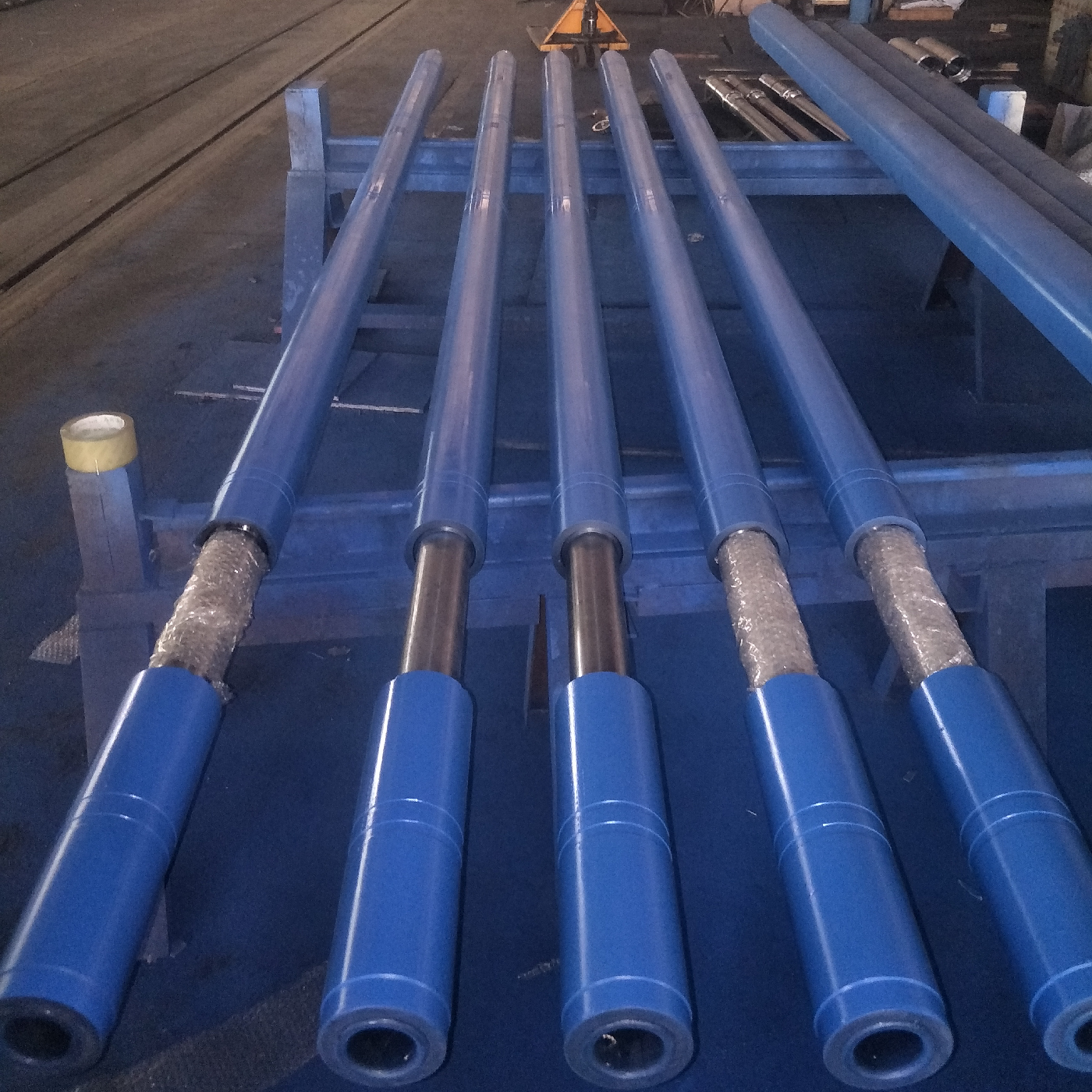

JAR
1、Product Introduction
Jar is a kind of releasing tool when the drilling stem stuck happened.When drilling stuck happens, it may provide a big lifting or lowering force to release the stuck working pieces. The releasing force will be produced through lifting/lowering operation on the ground.It have the advantages of easy operation, reliable and widely used in drilling,coring ,fishing and repairing of the down hole operation.
2、Place of manufacture: Shanghai
3、Lead time:1-3 months
4、Specifications and parameters
Item | Product name | specification | Detail parameter | Remakrs |
1 | Super Fishing Jar | CSJ121B | ODφ121,ID¢45, connection NC38,stroke305mm,Tensile load400KN,Max. work torque 8KN·m,Pull force 980KN。 |
|
2 | Super Fishing Jar | CSJ203B | ODφ203,ID¢71.4, connection 6 5/8REG,stroke330mm,Tensile load800KN,Max. work torque22KN·m,Pull force2100KN。 |
|
3 | bumper Jar | KXJ121B | ODφ121,ID¢38, connection NC38,stroke1000,Max. tension load1200KN,Max. work torque8KN·m。 |
|
4 | bumper Jar | KXJ229B | ODφ229,ID¢76, connection 7 5/8REG,stroke1500,Max. tension load2200KN,Max. work torque25KN·m。 |
|
5 | Jar Intensifier | ZJS89B | ODφ89,ID¢28,connection NC26,stroke215,Tensile load400KN,Max. work torque3.5KN·m。 |
|
6 | Jar Intensifier | ZJS197B | ODφ197,ID¢71, connection 6 5/8REG,stroke330,Tensile load2100KN,Max. work torque20KN·m。 |
|
7 | Mechanical-Hydraulic drilling jar | JYSZ121D | ODφ121,IDφ51,connection NC38,Upper stroke152mm,lower stroke152mm,Max. Jarring force350KN,Max. Pull force1600KN,allow working Pull force1100KN,Max. Torque 20KN·m,working torque 15KN·m,Calibrate the upstroke unlocking force200-240KN,Calibrate the down stroke unlocking force80-100KN。 |
|
8 | Mechanical-Hydraulic drilling jar | JYSZ203D | ODφ203,IDφ71.4,connection 6 5/8REG,Upper stroke152mm,lowerstroke152mm,Max. Jarring force1000KN,Max. Pull force4400KN,allow working Pull force2800KN,Max. Torque 100KN·m,working torque 35KN·m,Calibrate the upstroke unlocking force450-500KN,Calibrate the down stroke unlocking force190-210KN。。 |
|
9 | full hydraulic Drilling jar | QY108 | ODφ109.5,IDφ38,connection NC31,stroke530mm,Tensile strength1350KN,Torsional strength16KN·m,Up click unlocking force160±25KN,lower unlocking force70±25KN,Maximum upper release force250KN,Maximum lower release force 120KN。 |
|
10 | full hydraulic Drilling jar | QY203 | ODφ206,IDφ76,connection 6 5/8REG,stroke635mm,Tensile strength6230KN,Torsional strength135KN·m,Up click unlocking force425±25KN,lower unlocking force205±25KN,Maximum upper release force1000KN,Maximum lower release force500KN。 |
|
